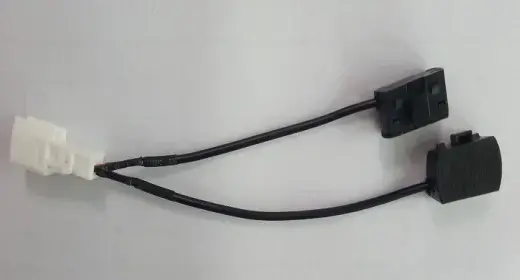

Microphone MEMS03 (EL)/Wired condenser microphone,wired microphone with best price
A. Transducer: Micro Electromechanical System
B. Operating Temp Range: -40℃～ +85℃
C. Storage temp range: -40℃-～+90℃
D. Output impedance: Max:150 ohms
E. Sensitivity -3.5±3dB ;-6±3dB ;-10±3dB @F=1khz,@94dbspl
F. Direction: Omnidirectional
G. Frequency response: 100Hz~10KHz
H. Operation voltage: 8.0V ±10%
I. Working current: 6mA±3mA
J. S/N ratio: Min 60dB @ F= 1kHz 94dBspl
K. THD:＜1% @F=1khz,@94dbspl
L. MAX input s.p.l:＞106dB
Share to:

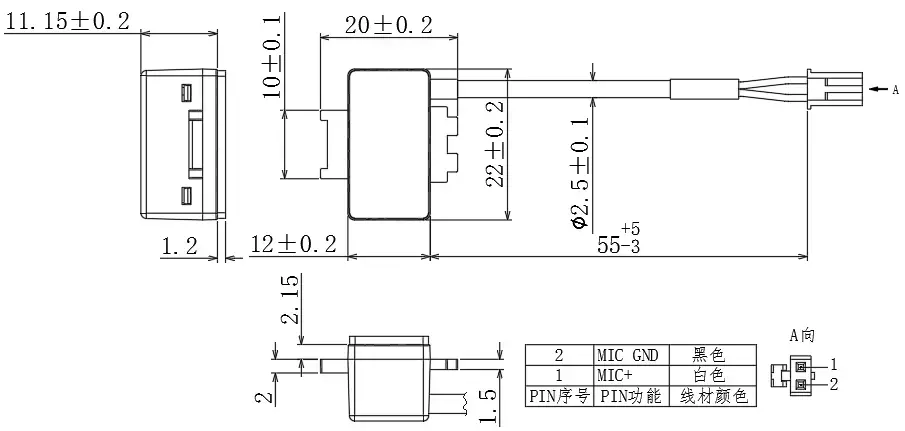

Dimension
